NEW QUESTION # 17
Computers in a small office are unable to access companypro.net. You run the ipconfig command on one of the computers. The results are shown in the exhibit.
You need to determine if you can reach the router.

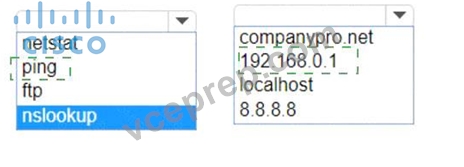

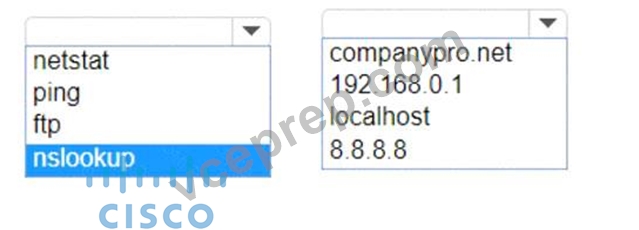

Which command should you use? Complete the command by selecting the correct options from each drop- down lists.
Answer:
Explanation:
Explanation:
To determine if you can reach the router, you should use the ping command followed by the IP address of the router. The ping command is a network utility used to test the reachability of a host on an Internet Protocol (IP) network and to measure the round-trip time for messages sent from the originating host to a destination computer.

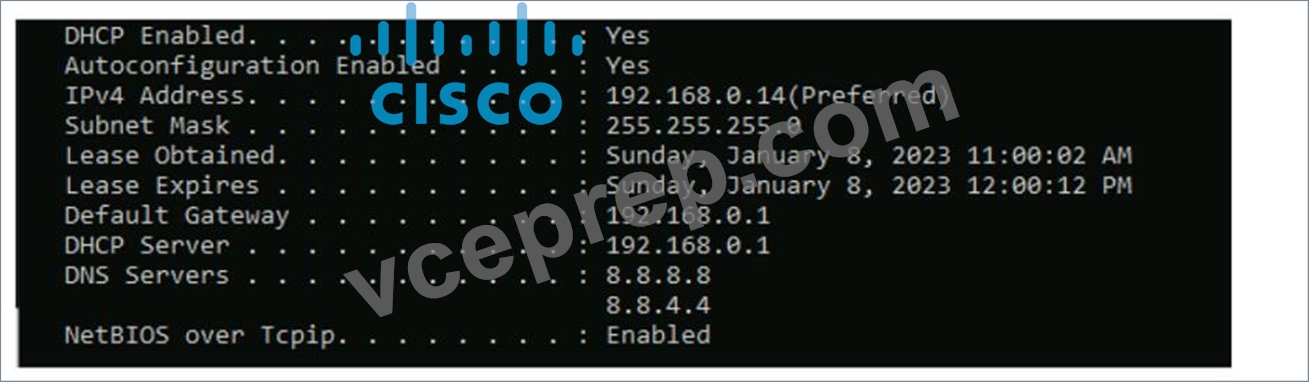

The Default Gateway in the ipconfig results is typically the router's IP address in a home or small office network. In this case, the Default Gateway is 192.168.0.1, which is the address you would ping to check connectivity to the router.
References :=
* How to Use the Ping Command
* Testing Network Connectivity with the Ping Command
To determine if you can reach the router, you should use the ping command with the IP address of the router.
* Command: ping
* Target: 192.168.0.1
So, the completed command is:
* ping 192.168.0.1
Step by Step Comprehensive and Detailed Explanation:
* ping: The ping command sends ICMP Echo Request messages to the target IP address and waits for an Echo Reply. It is commonly used to test the reachability of a network device.
* 192.168.0.1: This is the IP address of the default gateway (the router) as shown in the ipconfig output.
Pinging this address will help determine if the computer can communicate with the router.
References:
* Using the ping Command: ping Command Guide
NEW QUESTION # 18

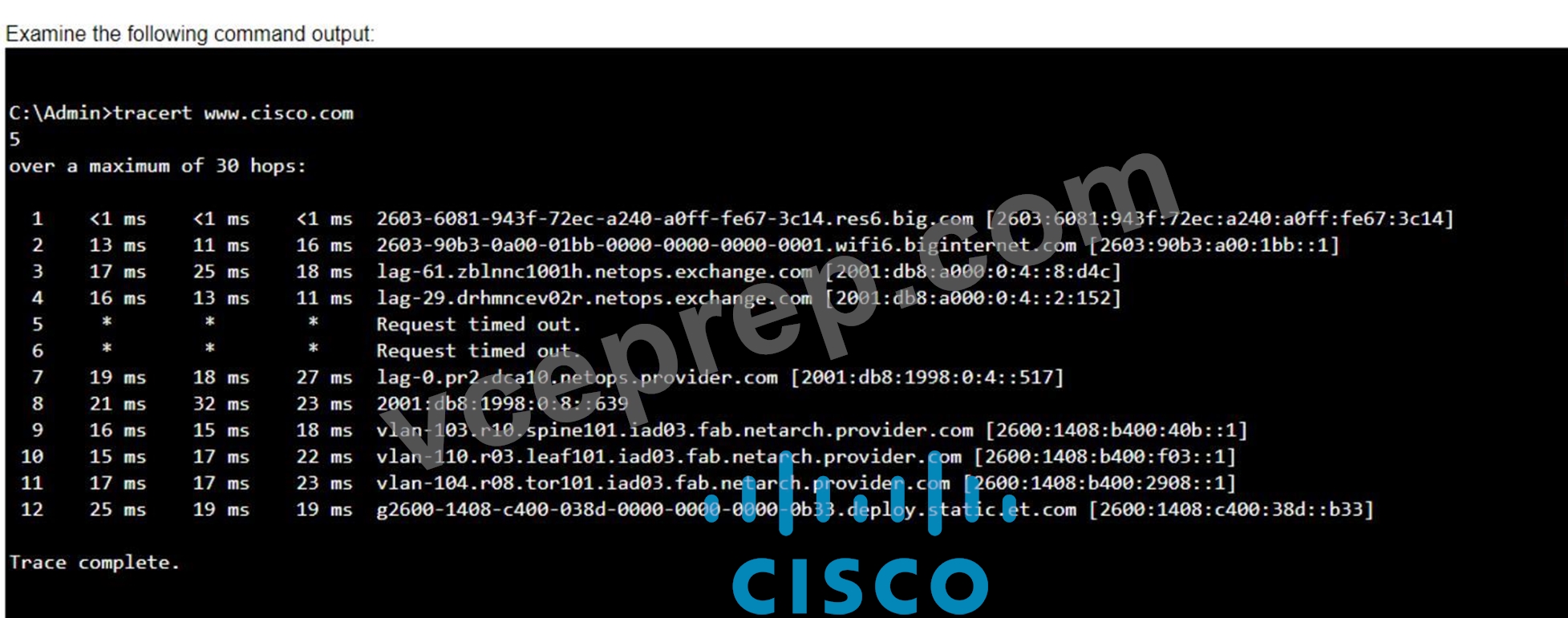

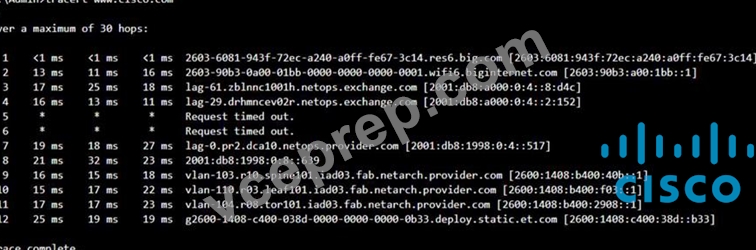

Examine the following output:
Which two conclusions can you make from the output of the tracert command? Note: You will receive partial credit for each correct answer. (Choose 2.)
- A. The IPv6 address associated with the www.cisco.com server is 2600:1408: c400: 38d: : b33.
- B. The trace failed after the fourth hop.
- C. The trace successfully reached the www.cisco.com server.
- D. The routers at hops 5 and 6 are offline.
- E. The device sending the trace has IPv6 address 2600:1408:c400:38d :: b33.
Answer: A,C
Explanation:
* Statement A: "The trace successfully reached the www.cisco.com server." This is true as indicated by the "Trace complete" message at the end, showing that the trace has reached its destination.
* Statement C: "The IPv6 address associated with the www.cisco.com server is
2600:1408:c400:38d::b33." This is true because the final hop in the trace, which is the destination, has this IPv6 address.
* Statement B: "The trace failed after the fourth hop." This is incorrect as the trace continues beyond the fourth hop, despite some intermediate timeouts.
* Statement D: "The routers at hops 5 and 6 are offline." This is not necessarily true. The routers might be configured to not respond to traceroute requests.
* Statement E: "The device sending the trace has IPv6 address 2600:1408:c400:38d::b33." This is incorrect; this address belongs to the destination server, not the sender.
Reference: * Understanding Traceroute: Traceroute Guide
NEW QUESTION # 19
You need to connect a computer's network adapter to a switch using a 1000BASE-T cable.
Which connector should you use?
- A. RJ-45
- B. RJ-11
- C. Coax
- D. OS2 LC
Answer: A
Explanation:
* 1000BASE-T Cable: This refers to Gigabit Ethernet over twisted-pair cables (Cat 5e or higher).
* Connector: RJ-45 connectors are used for Ethernet cables, including those used for 1000BASE-T.
* Coax: Used for cable TV and older Ethernet standards like 10BASE2.
* RJ-11: Used for telephone connections.
* OS2 LC: Used for fiber optic connections.
Reference: * Ethernet Standards and Cables: Ethernet Cable Guide
NEW QUESTION # 20
During the data encapsulation process, which OSI layer adds a header that contains MAC addressing information and a trailer used for error checking?
- A. Session
- B. Data Link
- C. Network
- D. Transport
Answer: B
Explanation:

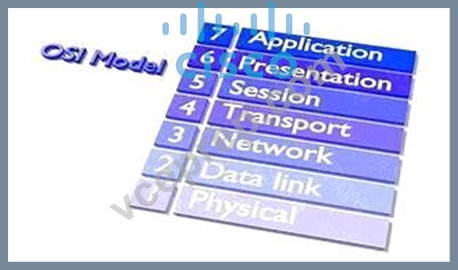

During the data encapsulation process, the Data Link layer of the OSI model is responsible for adding a header that contains MAC addressing information and a trailer used for error checking. The header typically includes the source and destination MAC addresses, while the trailer contains a Frame Check Sequence (FCS) which is used for error detection1.
The Data Link layer ensures that messages are delivered to the proper device on a LAN using hardware addresses and translates messages from the Network layer into bits for the Physical layer to transmit. It also controls how data is placed onto the medium and is received from the medium through the physical hardware.
Reference: =
The OSI Model - The 7 Layers of Networking Explained in Plain English
OSI Model - Network Direction
Which layer adds both header and trailer to the data?
What is OSI Model | 7 Layers Explained - GeeksforGeeks
NEW QUESTION # 21
What is the purpose of assigning an IP address to the management VLAN interface on a Layer 2 switch?
- A. To enable the switch to resolve URLs for the attached the devices
- B. To enable the switch to provide DHCP services to other switches in the network
- C. To enable access to the CLI on the switch through Telnet or SSH
- D. To enable the switch to act as a default gateway for the attached devices
Answer: C
Explanation:
The primary purpose of assigning an IP address to the management VLAN interface on a Layer 2 switch is to facilitate remote management of the switch. By configuring an IP address on the management VLAN, network administrators can access the switch's Command Line Interface (CLI) remotely using protocols such as Telnet or Secure Shell (SSH). This allows for convenient configuration changes, monitoring, and troubleshooting without needing physical access to the switch1.
References :=
*Understanding the Management VLAN
*Cisco - VLAN Configuration Guide
*Remote Management of Switches
Assigning an IP address to the management VLAN interface (often the VLAN 1 interface by default) on a Layer 2 switch allows network administrators to remotely manage the switch using protocols such as Telnet or SSH. This IP address does not affect the switch's ability to route traffic between VLANs but provides a means to access and configure the switch through its Command Line Interface (CLI).
*A: The switch does not act as a default gateway; this is typically a function of a Layer 3 device like a router.
*B: The switch does not resolve URLs; this is typically a function of DNS servers.
*C: The switch can relay DHCP requests but does not typically provide DHCP services itself; this is usually done by a dedicated DHCP server or router.
Thus, the correct answer is D. To enable access to the CLI on the switch through Telnet or SSH.
References :=
*Cisco VLAN Management Overview
*Cisco Catalyst Switch Management
NEW QUESTION # 22
DRAG DROP

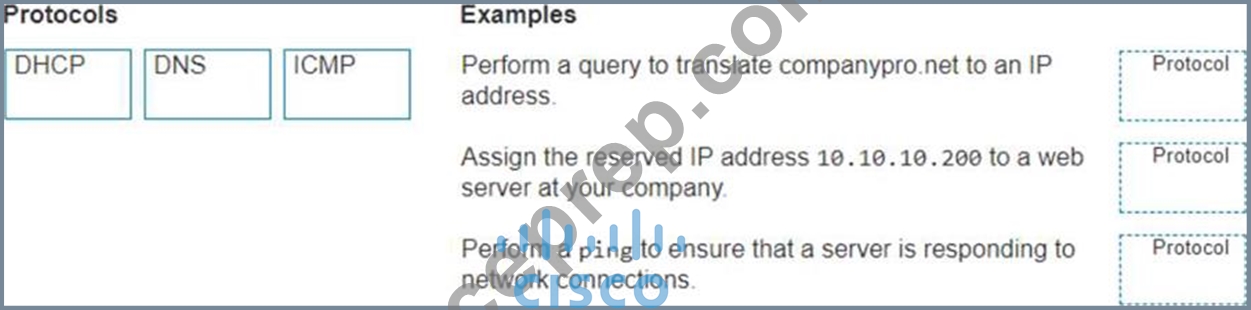

Move each protocol from the list on the left to its correct example on the right.
Answer:
Explanation:
Explanation:
The correct matching of the protocols to their examples is as follows:
DHCP: Assign the reserved IP address 10.10.10.200 to a web server at your company.
DNS: Perform a query to translate companypro.net to an IP address.
ICMP: Perform a ping to ensure that a server is responding to network connections.
Here's how each protocol corresponds to its example:
DHCP (Dynamic Host Configuration Protocol) is used to assign IP addresses to devices on a network.
In this case, DHCP would be used to assign the reserved IP address 10.10.10.200 to a web server.
DNS (Domain Name System) is used to translate domain names into IP addresses. Therefore, to translate companypro.net to an IP address, DNS would be utilized.
ICMP (Internet Control Message Protocol) is used for sending error messages and operational information indicating success or failure when communicating with another IP address. An example of this is using the ping command to check if a server is responding to network connections.
These protocols are essential for the smooth operation of networks and the internet.
Perform a query to translate companypro.net to an IP address.
DNS (Domain Name System): DNS is used to resolve domain names to IP addresses.
Assign the reserved IP address 10.10.10.200 to a web server at your company.
DHCP (Dynamic Host Configuration Protocol): DHCP is used to assign IP addresses to devices on a network.
Perform a ping to ensure that a server is responding to network connections.
ICMP (Internet Control Message Protocol): ICMP is used by network devices to send error messages and operational information, and it is the protocol used by the ping command.
DNS (Domain Name System): DNS translates human-friendly domain names like "companypro.net" into IP addresses that computers use to identify each other on the network.
DHCP (Dynamic Host Configuration Protocol): DHCP automatically assigns IP addresses to devices on a network, ensuring that no two devices have the same IP address.
ICMP (Internet Control Message Protocol): ICMP is used for diagnostic or control purposes, and the ping command uses ICMP to test the reachability of a host on an IP network.
Reference: DNS Basics: What is DNS?
DHCP Overview: What is DHCP?
ICMP and Ping: Understanding ICMP
NEW QUESTION # 23

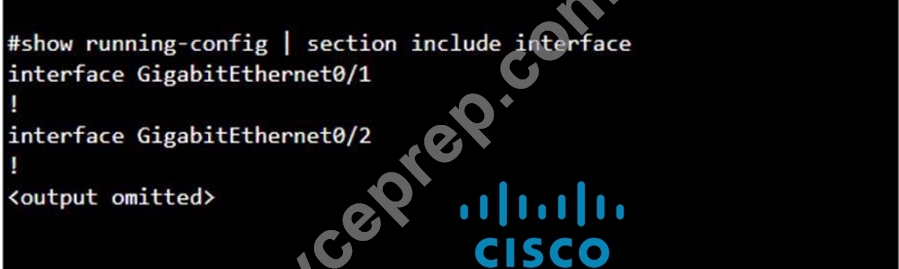

You purchase a new Cisco switch, turn it on, and connect to its console port. You then run the following command:

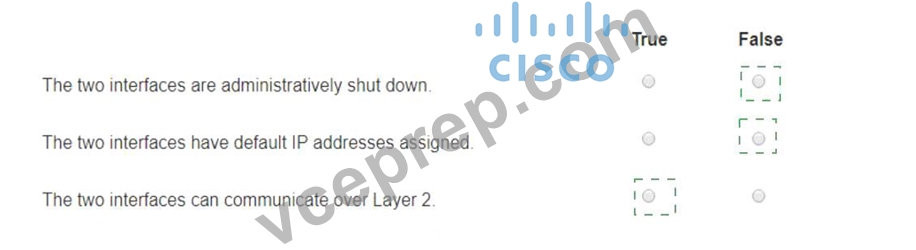

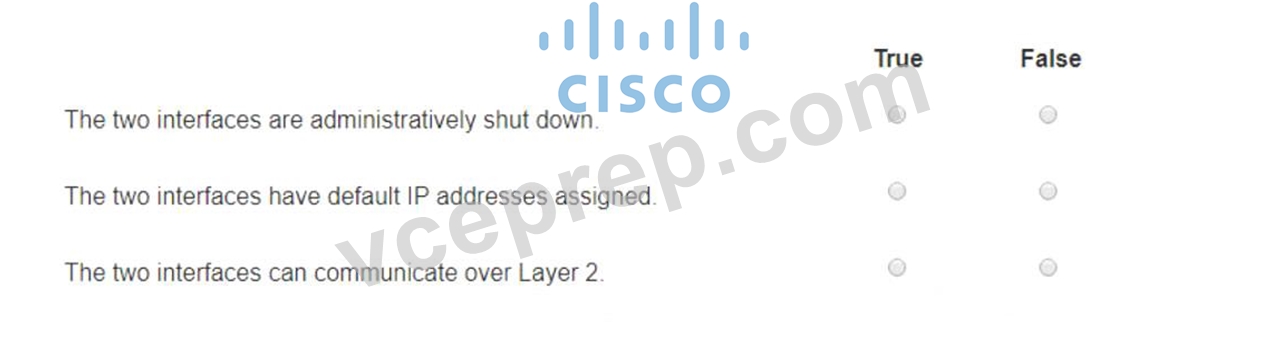

For each statement about the output, select True or False.
Note: You will receive partial credit for each correct selection.
Answer:
Explanation:
Explanation:
* The two interfaces are administratively shut down:
* False: The output does not show any "shutdown" command under the interfaces, which would indicate that they are administratively shut down. Therefore, they are likely in their default state, which is administratively up.
* The two interfaces have default IP addresses assigned:
* False: The output does not show any IP address configuration. In the default state, interfaces do not have IP addresses assigned unless explicitly configured.
* The two interfaces can communicate over Layer 2:
* True: By default, interfaces on a switch are Layer 2 interfaces capable of forwarding Ethernet frames. As there is no configuration provided that changes this, it can be assumed they can communicate over Layer 2.
* Interface Status: The absence of the "shutdown" command means the interfaces are not administratively shut down.
* IP Address Assignment: There is no evidence in the output that IP addresses have been assigned to the interfaces, which would typically be shown as "ip address" entries.
* Layer 2 Communication: Switch interfaces in their default state operate at Layer 2, enabling them to forward Ethernet frames and participate in Layer 2 communication.
References:
* Cisco IOS Interface Configuration: Cisco Interface Configuration
* Understanding Cisco Switch Interfaces: Cisco Switch Interfaces
NEW QUESTION # 24

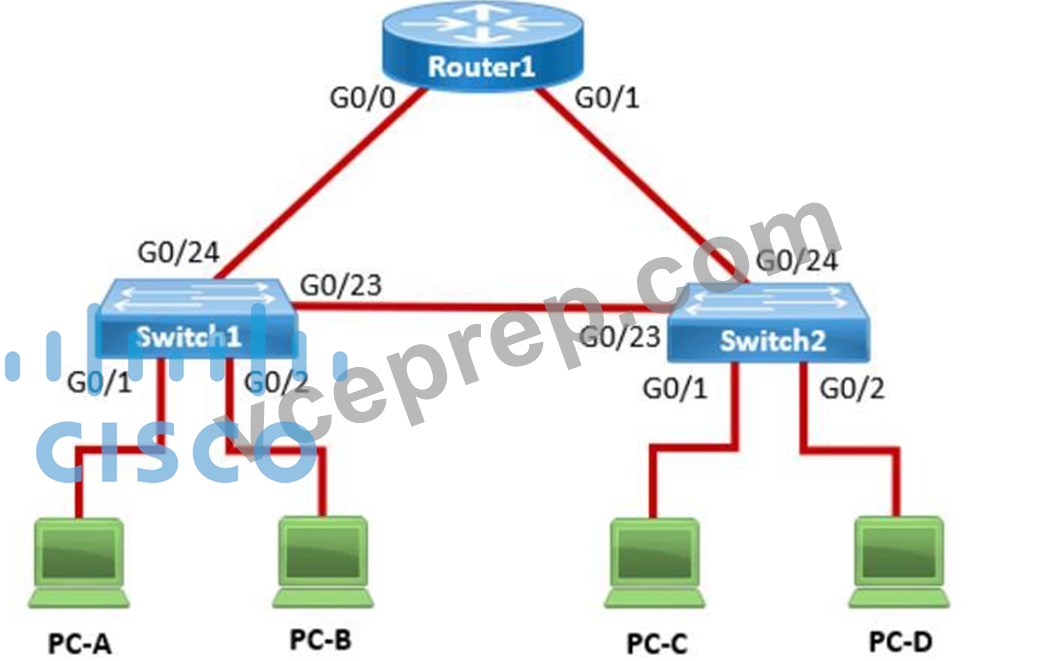

An engineer configured a new VLAN named VLAN2 for the Data Center team. When the team tries to ping addresses outside VLAN2 from a computer in VLAN2, they are unable to reach them.
What should the engineer configure?
- A. Default gateway
- B. Static route
- C. Default route
- D. Additional VLAN
Answer: A
Explanation:
When devices within a VLAN are unable to reach addresses outside their VLAN, it typically indicates that they do not have a configured path to external networks. The engineer should configure a default gateway for VLAN2. The default gateway is the IP address of the router's interface that is connected to the VLAN, which will route traffic from the VLAN to other networks12.
References :=
*Understanding and Configuring VLAN Routing and Bridging on a Router Using the IRB Feature
*VLAN 2 not able to ping gateway - Cisco Community
*VLANs: Virtual Local Area Networks (VLANs) logically segment network traffic to improve security and performance. Devices within the same VLAN can communicate directly.
*Default Gateway: For devices in VLAN2 to communicate with devices outside their VLAN, they need a default gateway configured. The default gateway is typically a router or Layer 3 switch that routes traffic between different VLANs and subnets.
*Additional VLAN: Not needed in this scenario as the issue is related to routing traffic outside VLAN2, not creating another VLAN.
*Default Route: While a default route on the router may be necessary, the primary issue for devices within VLAN2 is to have a configured default gateway.
*Static Route: This is used on routers to manually specify routes to specific networks but does not address the need for a default gateway on the client devices.
References:
*Cisco VLAN Configuration Guide: Cisco VLAN Configuration
*Understanding and Configuring VLANs: VLANs Guide
NEW QUESTION # 25
During the data encapsulation process, which OSI layer adds a header that contains MAC addressing information and a trailer used for error checking?
- A. Session
- B. Data Link
- C. Network
- D. Transport
Answer: B
NEW QUESTION # 26
A Cisco switch is not accessible from the network. You need to view its running configuration.
Which out-of-band method can you use to access it?
- A. SNMP
- B. Console
- C. SSH
- D. Telnet
Answer: B
Explanation:
Out-of-band management
When a Cisco switch is not accessible from the network, the recommended out-of-band method to access its running configuration is through the console port. Out-of-band management involves accessing the network device through a dedicated management channel that is not part of the data network. The console port provides direct access to the switch's Command Line Interface (CLI) without using the network, which is essential when the switch cannot be accessed remotely via the network12.
References :=
* Out-of-band (OOB) network interface configuration guidelines
* Out of band management configuration
NEW QUESTION # 27
DRAG DROP

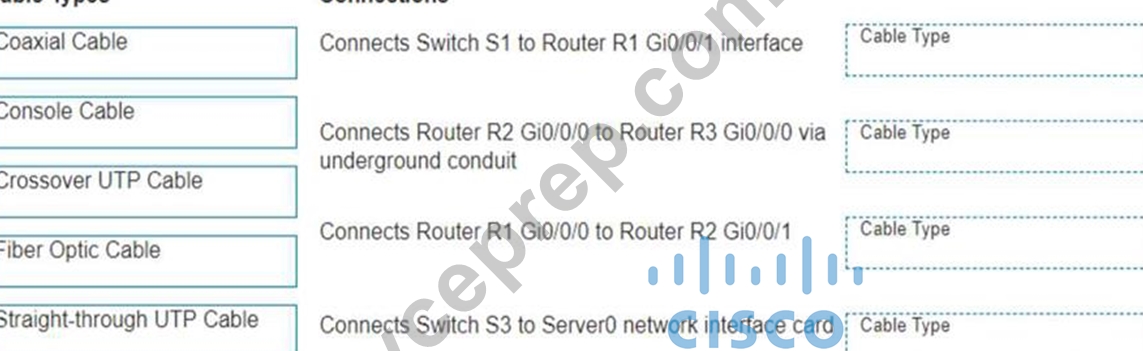

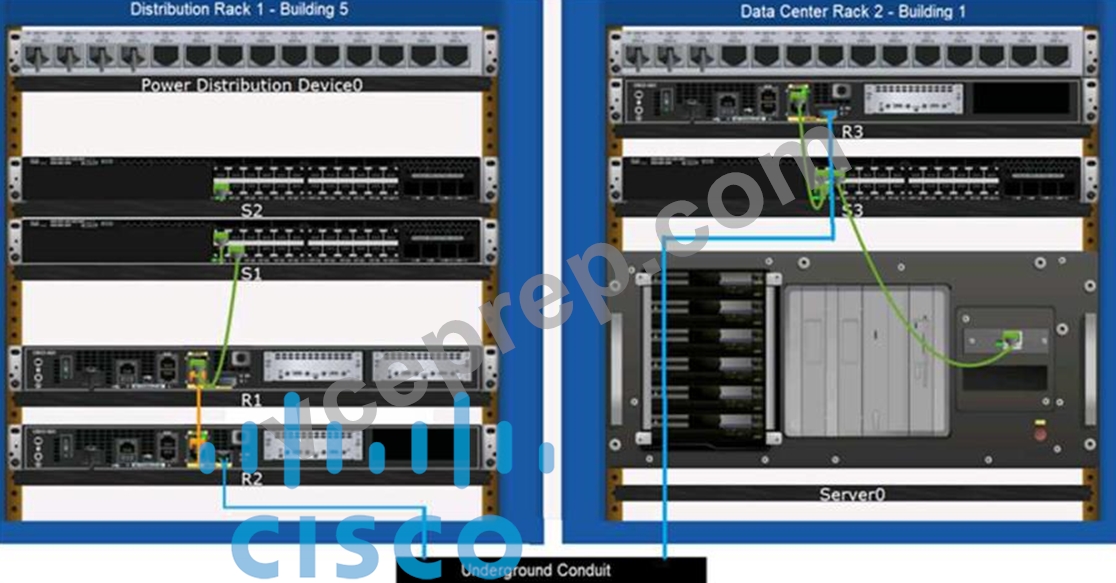

Examine the connections shown in the following image. Move the cable types on the right to the appropriate connection description on the left. You may use each cable type more than once or not at all.
Answer:
Explanation:
Explanation:

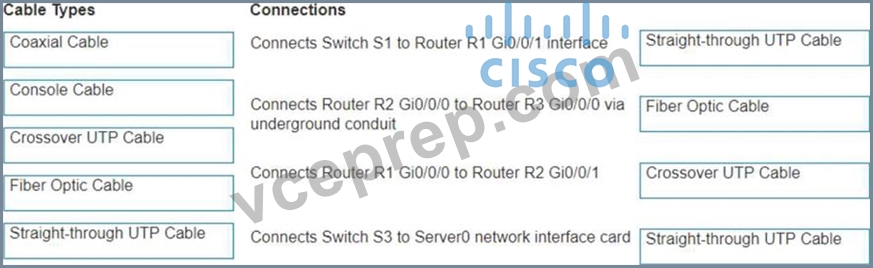

Based on the image description provided, here are the cable types matched with the appropriate connection descriptions:
Connects Switch S1 to Router R1 Gi0/0/1 interface Cable Type: = Straight-through UTP Cable
Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduit Cable Type: = Fiber Optic Cable
Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1 Cable Type: = Crossover UTP Cable
Connects Switch S3 to Server0 network interface card Cable Type: = Straight-through UTP Cable
The choices are based on standard networking practices where:
Straight-through UTP cables are typically used to connect a switch to a router or a network interface card.
Fiber optic cables are ideal for long-distance, high-speed data transmission, such as connections through an underground conduit.
Crossover UTP cables are used to connect similar devices, such as router-to-router connections.
These matches are consistent with the color-coded cables in the image: green for switch connections, yellow for router-to-router connections within the same rack, and blue for inter-rack connections. The use of these cables follows the Ethernet cabling standards.
Connects Switch S1 to Router R1 Gi0/0/1 interface:
Cable Type: Straight-through UTP Cable
A straight-through UTP cable is typically used to connect different types of devices, such as a switch to a router.
Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduit:
Cable Type: Fiber Optic Cable
Fiber optic cables are used for long-distance connections, such as those through an underground conduit between buildings.
Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1:
Cable Type: Crossover UTP Cable
A crossover UTP cable is typically used to connect similar devices directly, such as router to router connections.
Connects Switch S3 to Server0 network interface card:
Cable Type: Straight-through UTP Cable
A straight-through UTP cable is typically used to connect a switch to an end device, such as a server.
Straight-through UTP Cable: Used to connect different devices (e.g., switch to router, switch to server).
Crossover UTP Cable: Used to connect similar devices directly (e.g., router to router, switch to switch).
Fiber Optic Cable: Used for long-distance and high-speed connections, often between buildings or data centers.
Reference: Network Cable Types and Uses: Cisco Network Cables
Understanding Ethernet Cabling: Ethernet Cable Guide
NEW QUESTION # 28
DRAG DROP

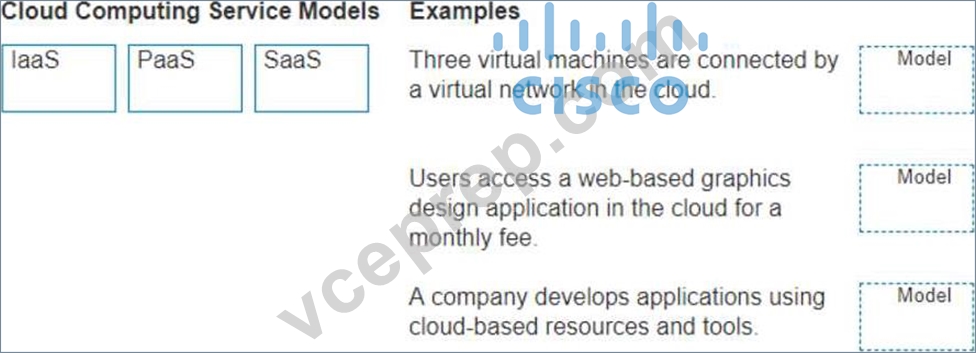

Move each cloud computing service model from the list on the left to the correct example on the right. Note: You will receive partial credit for each correct answer.
Answer:
Explanation:
Explanation:
Three virtual machines are connected by a virtual network in the cloud.
Model: IaaS (Infrastructure as a Service)
IaaS provides virtualized computing resources over the internet, including virtual machines, storage, and networks.
Users access a web-based graphics design application in the cloud for a monthly fee.
Model: SaaS (Software as a Service)
SaaS delivers software applications over the internet, typically on a subscription basis, accessible via a web browser.
A company develops applications using cloud-based resources and tools. Model: PaaS (Platform as a Service)
PaaS provides a platform allowing customers to develop, run, and manage applications without dealing with the infrastructure.
IaaS (Infrastructure as a Service): Provides virtualized hardware resources that customers can use to build their own computing environments.
PaaS (Platform as a Service): Offers a platform with tools and services to develop, test, and deploy applications.
SaaS (Software as a Service): Delivers fully functional applications over the internet that users can access and use without managing the underlying infrastructure.
Reference: Cloud Service Models: Understanding IaaS, PaaS, SaaS
NIST Definition of Cloud Computing: NIST Cloud Computing
NEW QUESTION # 29

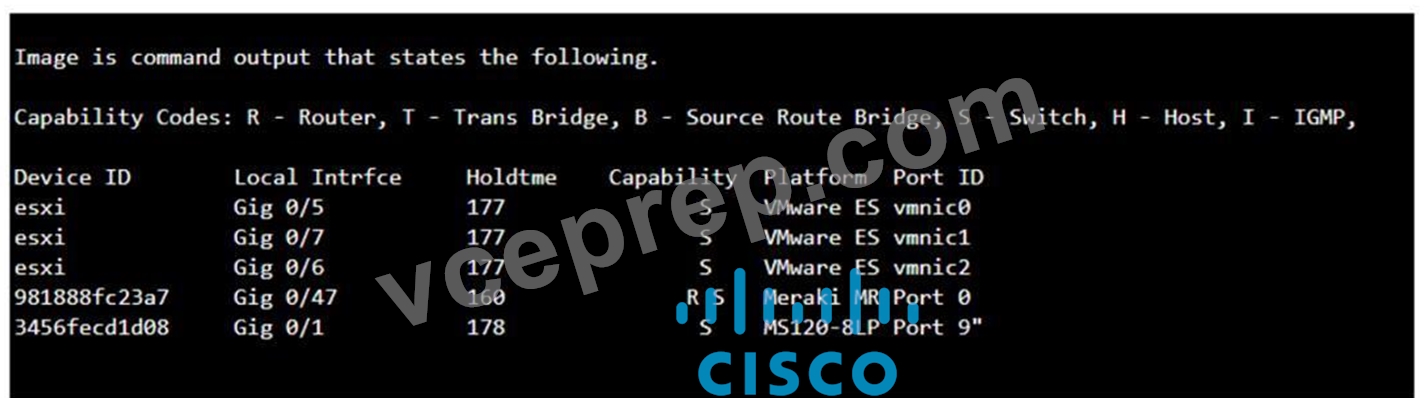

Which command will display the following output?
- A. show ip interface
- B. show mac-address-table
- C. show cdp neighbor
- D. show inventory
Answer: C
Explanation:
The command that will display the output provided, which includes capability codes, local interface details, device IDs, hold times, and platform port ID capabilities, is the show cdp neighbor command. This command is used in Cisco devices to display current information about neighboring devices detected by Cisco Discovery Protocol (CDP), which includes details such as the interface through which the neighbor is connected, the type of device, and the port ID of the device1.
References :=
*Cisco - show cdp neighbors
The provided output is from the Cisco Discovery Protocol (CDP) neighbor table. The show cdp neighbor command displays information about directly connected Cisco devices, including Device ID, Local Interface, Holdtime, Capability, Platform, and Port ID.
*A. show mac-address-table: Displays the MAC address table on the switch.
*C. show inventory: Displays information about the hardware inventory of the device.
*D. show ip interface: Displays IP interface status and configuration.
Thus, the correct answer is B. show cdp neighbor.
References :=
*Cisco CDP Neighbor Command
*Understanding CDP
NEW QUESTION # 30
An engineer configured a new VLAN named VLAN2 for the Data Center team. When the team tries to ping addresses outside VLAN2 from a computer in VLAN2, they are unable to reach them.
What should the engineer configure?
- A. Default gateway
- B. Static route
- C. Default route
- D. Additional VLAN
Answer: A
Explanation:
When devices within a VLAN are unable to reach addresses outside their VLAN, it typically indicates that they do not have a configured path to external networks. The engineer should configure a default gateway for VLAN2. The default gateway is the IP address of the router's interface that is connected to the VLAN, which will route traffic from the VLAN to other networks12.
Reference: =
* Understanding and Configuring VLAN Routing and Bridging on a Router Using the IRB Feature
* VLAN 2 not able to ping gateway - Cisco Community
* VLANs: Virtual Local Area Networks (VLANs) logically segment network traffic to improve security and performance. Devices within the same VLAN can communicate directly.
* Default Gateway: For devices in VLAN2 to communicate with devices outside their VLAN, they need a default gateway configured. The default gateway is typically a router or Layer 3 switch that routes traffic between different VLANs and subnets.
* Additional VLAN: Not needed in this scenario as the issue is related to routing traffic outside VLAN2, not creating another VLAN.
* Default Route: While a default route on the router may be necessary, the primary issue for devices within VLAN2 is to have a configured default gateway.
* Static Route: This is used on routers to manually specify routes to specific networks but does not address the need for a default gateway on the client devices.
Reference:
* Cisco VLAN Configuration Guide: Cisco VLAN Configuration
* Understanding and Configuring VLANs: VLANs Guide
NEW QUESTION # 31

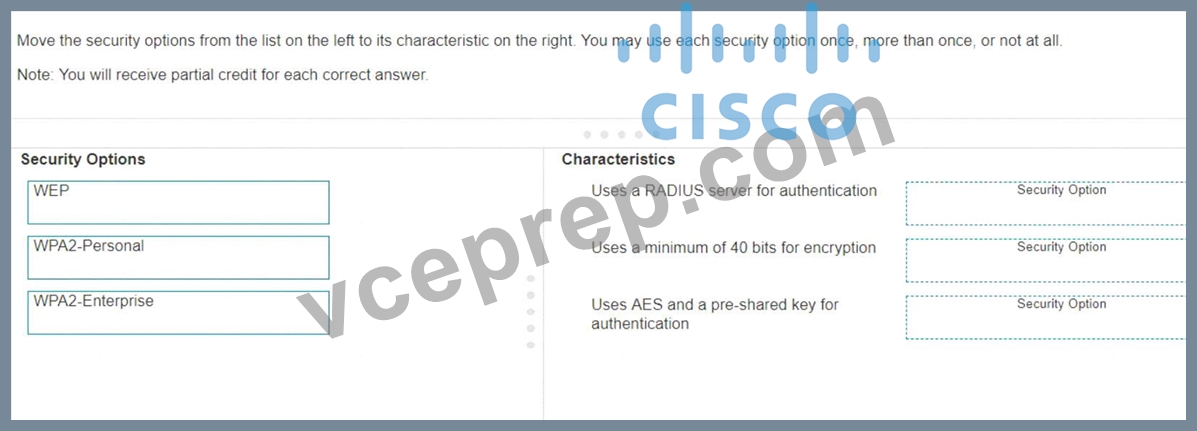

Move the security options from the list on the left to its characteristic on the right. You may use each security option once, more than once, or not at all.
Note: You will receive partial credit for each correct answer.
Answer:
Explanation:
Explanation:

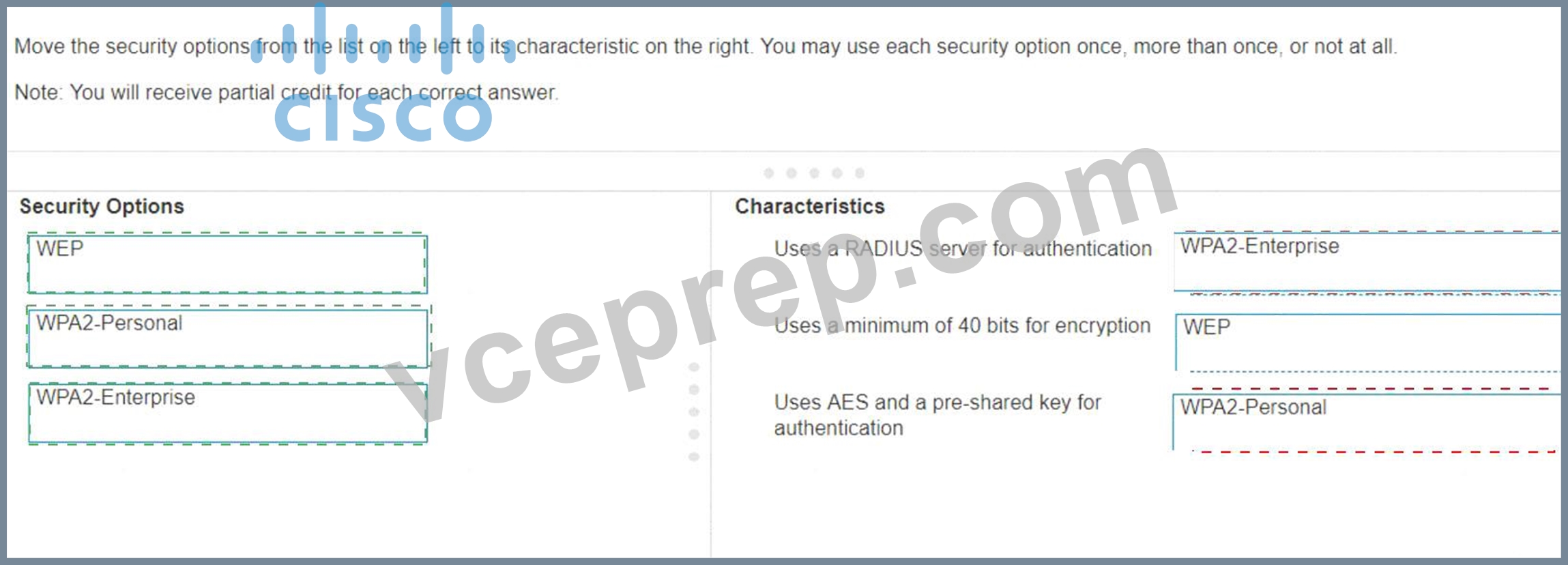

The correct matching of the security options to their characteristics is as follows:
* WPA2-Enterprise: Uses a RADIUS server for authentication
* WEP: Uses a minimum of 40 bits for encryption
* WPA2-Personal: Uses AES and a pre-shared key for authentication
Here's why each security option matches the characteristic:
* WPA2-Enterprise uses a RADIUS server for authentication, which provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service.
* WEP (Wired Equivalent Privacy) is an outdated security protocol that uses a minimum of 40 bits for encryption (and up to 104 bits), which is relatively weak by today's standards.
* WPA2-Personal (Wi-Fi Protected Access 2 - Personal) uses the Advanced Encryption Standard (AES) for encryption and a pre-shared key (PSK) for authentication, which is shared among users to access the network.
These security options are essential for protecting wireless networks from unauthorized access and ensuring data privacy.
NEW QUESTION # 32
HOTSPOT
You want to list the IPv4 addresses associated with the host name www.companypro.net.

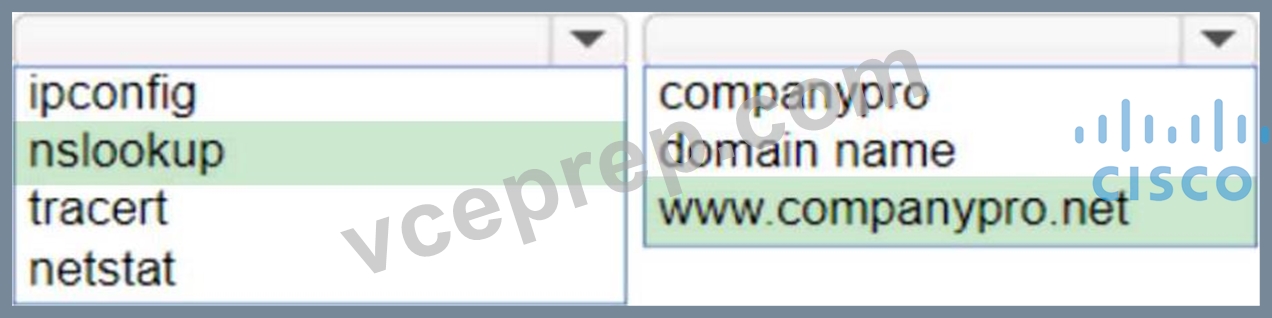

Complete the command by selecting the correct option from each drop-down list.
Answer:
Explanation:
Explanation:
To list the IPv4 addresses associated with the host name www.companypro.net, you should use the following command:
nslookup www.companypro.net
This command will query the DNS servers to find the IP address associated with the hostname provided. If you want to ensure that it returns the IPv4 address, you can specify the -type=A option, which stands for Address records that hold IPv4 addresses1. However, the nslookup command by default should return the IPv4 address if available.
To list the IPv4 addresses associated with the host name www.companypro.net, you should use the nslookup command.
Command: nslookup
Target: www.companypro.net
So, the completed command is:
nslookup www.companypro.net
nslookup: This command is used to query the Domain Name System (DNS) to obtain domain name or IP address mapping or for any other specific DNS record.
www.companypro.net: This is the domain name you want to query to obtain its associated IP addresses.
Reference: Using nslookup: nslookup Command Guide
NEW QUESTION # 33
What is the most compressed valid format of the IPv6 address 2001 :0db8:0000:0016:0000:001b: 2000:0056?
- A. 2001:db8: : 16: : 1b: 2000: 56
- B. 2001:db8: : 16: : 1b:2:56
- C. 2001:db8: 0:16: :1b: 2000:56
- D. 2001:db8: 16: :1b:2:56
Answer: C
Explanation:
IPv6 addresses can be compressed by removing leading zeros and replacing consecutive groups of zeros with a double colon (::). Here's how to compress the address 2001:0db8:0000:0016:0000:001b:2000:0056:
Remove leading zeros from each segment:
2001:db8:0000:0016:0000:001b:2000:0056 becomes 2001:db8:0:16:0:1b:2000:56
Replace the longest sequence of consecutive zeros with a double colon (::). In this case, the two consecutive zeros between the 16 and 1b:
2001:db8:0:16::1b:2000:56
Thus, the most compressed valid format of the IPv6 address is 2001:db8:0:16::1b:2000:56.
Reference: =
Cisco Learning Network
IPv6 Addressing (Cisco)
NEW QUESTION # 34
HOTSPOT

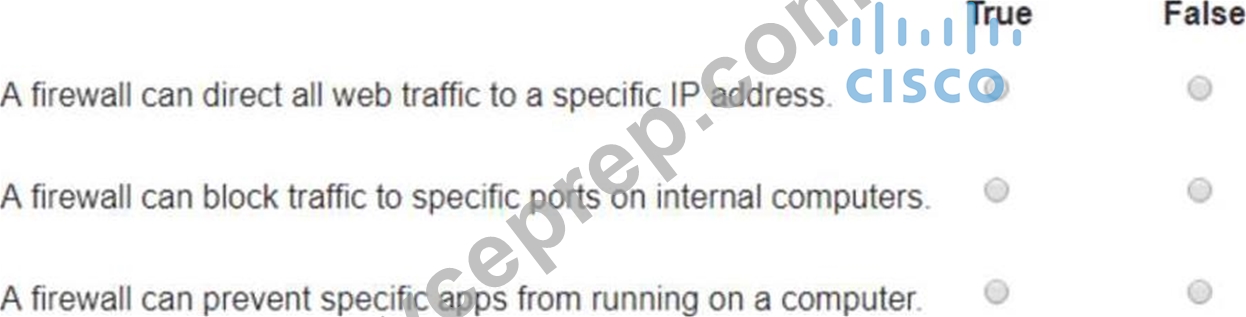

You plan to use a network firewall to protect computers at a small office. For each statement about firewalls, select True or False.
Note: You will receive partial credit for each correct selection.
Answer:
Explanation:
Explanation:

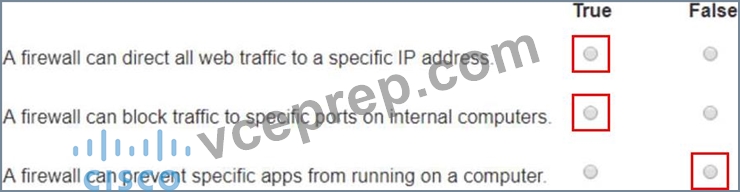

A firewall can direct all web traffic to a specific IP address.
True: Firewalls can be configured to perform Network Address Translation (NAT) and port forwarding, which can direct all web traffic (typically on port 80 and 443) to a specific internal IP address.
A firewall can block traffic to specific ports on internal computers.
True: Firewalls can be configured with access control lists (ACLs) or rules to block traffic to specific ports on internal computers, enhancing security by restricting unwanted or harmful traffic.
A firewall can prevent specific apps from running on a computer.
False: Firewalls typically control traffic flow and do not prevent specific applications from running on a computer. Application control is usually managed by endpoint security software or application control systems.
Directing Web Traffic: Firewalls can manage traffic redirection using NAT and port forwarding rules to route web traffic to designated servers or devices within the network.
Blocking Specific Ports: Firewalls can enforce security policies by blocking or allowing traffic based on port numbers, ensuring that only permitted traffic reaches internal systems.
Application Control: While firewalls manage network traffic, preventing applications from running typically requires software specifically designed for endpoint protection and application
management.
Reference: Understanding Firewalls: Firewall Capabilities
Network Security Best Practices: Network Security Guide
NEW QUESTION # 35
In the network shown in the following graphic, Switch1 is a Layer 2 switch.
PC-A sends a frame to PC-C. Switch1 does not have a mapping entry for the MAC address of PC-C. Which action does Switch1 take?
- A. Switch1 drops the frame and sends an error message back to PC-A.
- B. Switch1 queries Switch2 for the MAC address of PC-C.
- C. Switch1 floods the frame out all active ports except port G0/1.
- D. Switch1 sends an ARP request to obtain the MAC address of PC-C.
Answer: C
Explanation:
Understanding How Layer 2 Switches Handle Unknown MAC Addresses
Switches operate at Layer 2 (Data Link Layer) of the OSI model and maintain a MAC address table (CAM table) to forward frames efficiently.
* When a switch receives a frame, it checks its MAC address table to see if it knows the destination MAC address.
* If the destination MAC address is not in the table (meaning the switch does not know which port leads to PC-C), the switch follows the flooding behavior.
What Happens When Switch1 Receives a Frame from PC-A to PC-C?
* Switch1 checks its MAC table:
* The source MAC (PC-A) is recorded in the table on port G0/1.
* The destination MAC (PC-C) is not in the table.
* Switch1 does not know where PC-C is:
* It floods the frame out of all active ports except the port it was received on (G0/1).
* This means the frame is sent to:
* Switch2 (via G0/23)
* PC-B (via G0/2)
* Switch2 receives the frame and follows the same process:
* If Switch2 has PC-C's MAC in its table, it forwards the frame appropriately.
* If not, it floods the frame again until PC-C replies.
* Once PC-C responds, Switch1 and Switch2 learn its MAC address and update their tables.
Why Other Options Are Incorrect:
# A. Switch1 queries Switch2 for the MAC address of PC-C.
* Incorrect: Switches do not query other switches directly for MAC addresses. Instead, they rely on learning MAC addresses dynamically through frame forwarding.
# B. Switch1 drops the frame and sends an error message back to PC-A.
* Incorrect: Switches do not drop frames for unknown MAC addresses. Instead, they flood the frames out all ports except the incoming port.
# D. Switch1 sends an ARP request to obtain the MAC address of PC-C.
* Incorrect:
* ARP (Address Resolution Protocol) is only used to resolve IP addresses to MAC addresses.
* Since PC-A is sending a frame (Layer 2), not an IP packet (Layer 3), ARP is not involved here.
Conclusion
Since Switch1 does not know the destination MAC address, it floods the frame out all active ports except the port it was received on. This is the default behavior of Layer 2 switches when they encounter an unknown MAC address.
Thus, the correct answer is:# C. Switch1 floods the frame out all active ports except port G0/1.
References
* Cisco CCNA 200-301 Official Guide - MAC Address Table & Frame Forwarding
* RFC 894 - Standard for Ethernet Frame Forwarding
* Cisco Networking Essentials - Switch Flooding Behavior
NEW QUESTION # 36

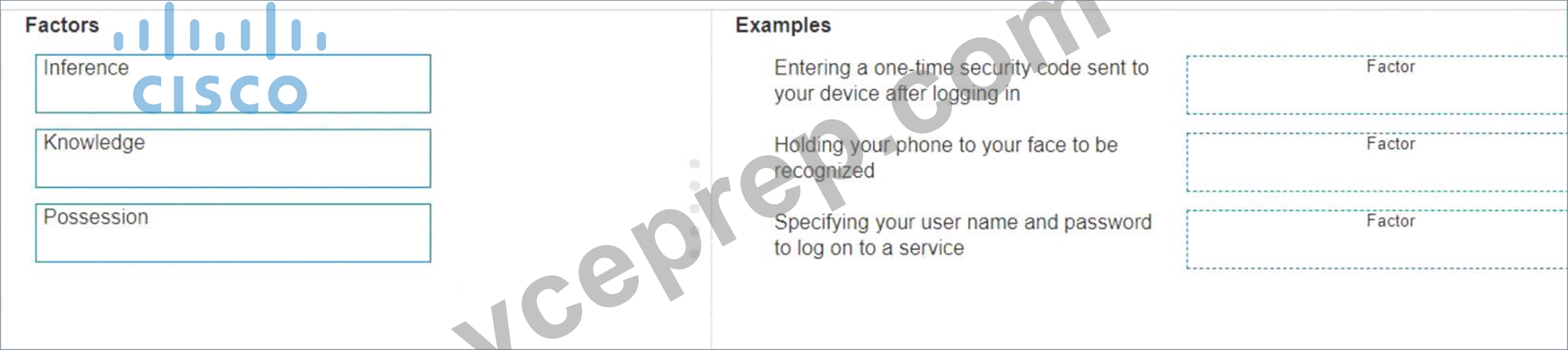

Move the MFA factors from the list on the left to their correct examples on the right. You may use each factor once, more than once, or not at all.
Note: You will receive partial credit for each correct selection.
Answer:
Explanation:
Explanation:

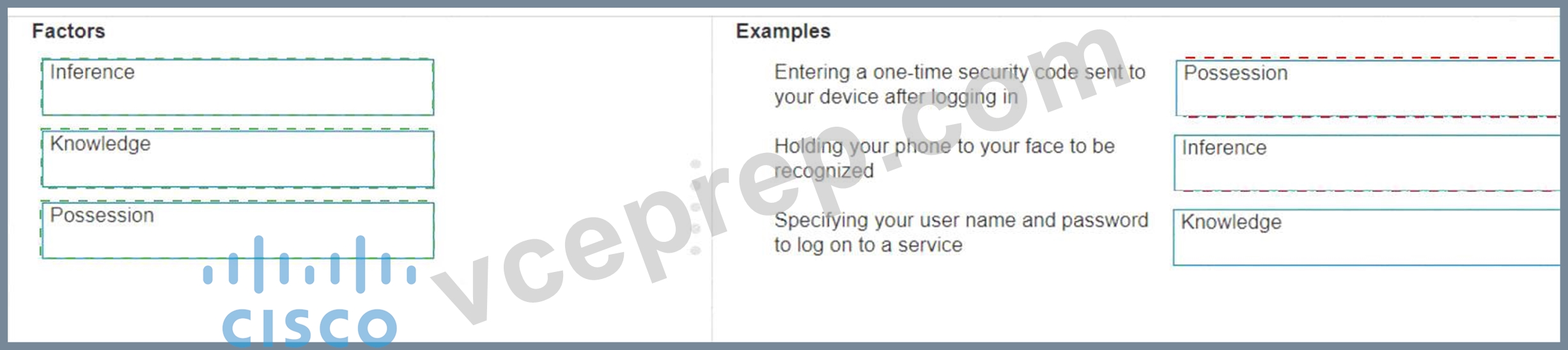

The correct matching of the MFA factors to their examples is as follows:
* Entering a one-time security code sent to your device after logging in: Possession
* Holding your phone to your face to be recognized: Inherence
* Specifying your user name and password to log on to a service: Knowledge Here's why each factor matches the example:
* Possession: This factor is something the user has, like a mobile device. A one-time security code sent to this device falls under this category.
* Inherence: This factor is something the user is, such as a biometric characteristic. Facial recognition using a phone is an example of this factor.
* Knowledge: This factor is something the user knows, like a password or PIN.
Multi-Factor Authentication (MFA) enhances security by requiring two or more of these factors to verify a user's identity before granting access.
* Entering a one-time security code sent to your device after logging in.
* Factor: Possession
* Explanation: This factor relates to something you have, such as a device that receives a security code.
* Holding your phone to your face to be recognized.
* Factor: Inference (typically referred to as Inherence or Biometric)
* Explanation: This factor relates to something you are, such as biometric authentication like facial recognition.
* Specifying your username and password to log on to a service.
* Factor: Knowledge
* Explanation: This factor relates to something you know, such as a username and password.
* Possession Factor: This involves something the user has in their possession. Receiving a one-time security code on a device (e.g., phone) is an example of this.
* Inference Factor (Inherence/Biometric): This involves something inherent to the user, such as biometric verification (e.g., facial recognition or fingerprint scanning).
* Knowledge Factor: This involves something the user knows, such as login credentials (username and password).
References:
* Multi-Factor Authentication (MFA) Explained: MFA Guide
* Understanding Authentication Factors: Authentication Factors
NEW QUESTION # 37
During the data encapsulation process, which OSI layer adds a header that contains MAC addressing information and a trailer used for error checking?
- A. Session
- B. Data Link
- C. Network
- D. Transport
Answer: B
Explanation:
OSI model
During the data encapsulation process, the Data Link layer of the OSI model is responsible for adding a header that contains MAC addressing information and a trailer used for error checking. The header typically includes the source and destination MAC addresses, while the trailer contains a Frame Check Sequence (FCS) which is used for error detection1.
The Data Link layer ensures that messages are delivered to the proper device on a LAN using hardware addresses and translates messages from the Network layer into bits for the Physical layer to transmit. It also controls how data is placed onto the medium and is received from the medium through the physical hardware.
References :=
* The OSI Model - The 7 Layers of Networking Explained in Plain English
* OSI Model - Network Direction
* Which layer adds both header and trailer to the data?
* What is OSI Model | 7 Layers Explained - GeeksforGeeks
NEW QUESTION # 38
Examine the following output:
Which two conclusions can you make from the output of the tracert command? (Choose 2.) Note: You will receive partial credit for each correct answer.
- A. The IPv6 address associated with the www.cisco.com server is 2600:1408: c400: 38d: : b33.
- B. The trace failed after the fourth hop.
- C. The trace successfully reached the www.cisco.com server.
- D. The routers at hops 5 and 6 are offline.
- E. The device sending the trace has IPv6 address 2600:1408:c400:38d :: b33.
Answer: A,C
Explanation:
*Statement A: "The trace successfully reached the www.cisco.com server." This is true as indicated by the
"Trace complete" message at the end, showing that the trace has reached its destination.
*Statement C: "The IPv6 address associated with the www.cisco.com server is 2600:1408:c400:38d::b33." This is true because the final hop in the trace, which is the destination, has this IPv6 address.
*Statement B: "The trace failed after the fourth hop." This is incorrect as the trace continues beyond the fourth hop, despite some intermediate timeouts.
*Statement D: "The routers at hops 5 and 6 are offline." This is not necessarily true. The routers might be configured to not respond to traceroute requests.
*Statement E: "The device sending the trace has IPv6 address 2600:1408:c400:38d::b33." This is incorrect; this address belongs to the destination server, not the sender.
References:
*Understanding Traceroute: Traceroute Guide
NEW QUESTION # 39
......
100-150 dumps Free Test Engine Verified By It Certified Experts: https://www.vceprep.com/100-150-latest-vce-prep.html
Realistic 100-150 Accurate & Verified Answers As Experienced in the Actual Test!: https://drive.google.com/open?id=1mUSDKc8B51y7xwq_kVO-R63n9cErhHm5
